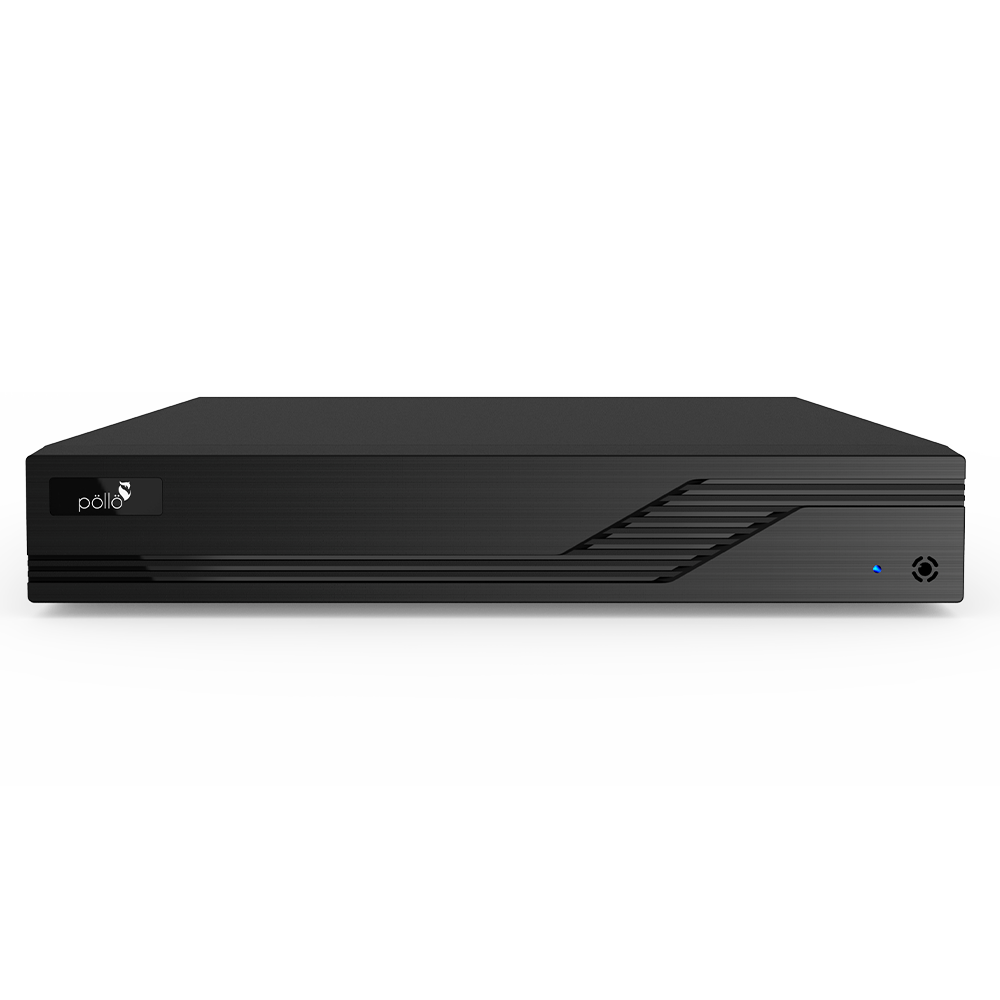

Pollo PLC-1204H1/PM 2MP 04 CHANNEL XVR
₨ 9,000
- 04 channel Input
- 2MP FHD Supported XVR
- TVI/AHD/DVR/IP
- 2 Channel up-to 2MP@30fps
- 264/H.265
- 1 Channel Audio Input/Output
- IP Cameras Supported
- 1 SATA Interface Up-to 8TB
Description
- 04 channel Input
- 2MP FHD Supported XVR
- TVI/AHD/DVR/IP
- 2 Channel up-to 2MP@30fps
- 264/H.265
- 1 Channel Audio Input/Output
- IP Cameras Supported
- 1 SATA Interface Up-to 8TB
Specifications
Specifications
| Model No. | PLC-1204H1/PM |
|---|---|
| System | Embedded Linux |
| Analog Video Input | BNC × 4, BNC interface (1.0Vp-p; 75Ω), TVI/ AHD/CVI: 1080P/ 1080P Lite/ 720P/ 720P Lite/WD1 |
| IP Video Input | 2CH, up to 2MP@30fps |
| Total Input | 6CH |
| Video Output | HDMI Ă— 1 :1920 Ă— 1080 / 1280 Ă— 1024 / 1024 Ă— 768 VGA Ă— 1: 1920 Ă— 1080 / 1280 Ă— 1024 / 1024 Ă— 768 |
| Video Compression | H.264/H.265 |
| Multi-screen Display | 1/4/6/9 |
| Audio Input | RCA Ă—1 |
| Audio Output | RCA × 1 (linear, 600Ω) |
| Two-way audio | Take up channel one audio input |
| Audio Compression | G.711(U/A) |
| Recording Resolution | 1080P Lite/ 720P/ 720P Lite/WD1 |
| Recording Frame Rate | Analog Channel: 4CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) 8CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) ( only CH 1 supports) 1080P Lite/720P/WD1: 12fps (PAL)/15fps (NTSC) ( other channels support) 720P Lite: 25fps(PAL) / 30fps (NTSC) IP Channel: 25fps(PAL) / 30fps (NTSC) |
| Recording Bit Rate | 32Kbps ~ 4Mbps |
| Playback | 4 CH |
| Playback Search | Time slice / time / event / tag search |
| Play back Smart Search | Highlight colours to display the camera record in a certain period of time, different colours refer to different record events |
| Play back Function | Play, pause, FF, FB, digital zoom, etc. |
| Alarm Mode | Manual, motion, exception, smart event |
| Alarm Input | No |
| Alarm Output | No |
| Network Interface | RJ 45 100Mbps Ă— 1 |
| Network Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP |
| Incoming Bandwidth | 10Mbps |
| Outgoing Bandwidth | 30Mbps |
| Client Connection | Max. 5 users’ access |
| Mobile Device OS | iOS, Android |
| Storage HDD | SATAĂ— 1, up to 8TB |
| Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes |
| RS 485 | No |
| USB | USB 2.0 Ă— 2 |
| Remote Controller | No |
| Power Supply | DC12V / 1.5A |
| Consumption | ≤ 5W (without HDD) |
| Dimensions(mm) | 255 Ă— 222 Ă— 42 (W Ă— D Ă— H) |
| Working Environment | 10~50°C, 10%~90% (humidity) |
| Certificate | CE, FCC |
| Environment Protection | Directive EU RoHS, WEEE, REACH |
